Relationships

What do you want to do?

Sometimes a relationship exists between two (or more) topics, and you want to illustrate this on your map. You can add a relationship line that connects two topics, and label it if you wish. The default formatting for the line is determined by the map's theme settings.

Special types of relationships are used to indicate Task dependencies.

Read Note



   See also:



Connect topics with a relationship

  1. On the Home or Insert tab, in the Objects group, click Relationship.

  1. When you point to the first topic the cursor changes to the relationship cursor .

  2. Click the first topic, and then click the second.

  3. The relationship line appears to link the two topics.

Relationship lines follow an optimal path by default because their Auto Adjust attribute is enabled. If you move one or both of the topics connected by a relationship, the line will automatically adjust to follow an optimal path between the topics.

Add a callout (label) to the relationship

  1. Right-click the relationship line.

  2. Click Insert Callout.

  3. When the generic callout appears select it to enter your text.
    Read Hint

Top of Page

Viewing partial relationships

When the topic at one end of the relationship is visible but the other is not (on a collapsed branch, hidden by a filter, or on a different slide) you will see a partial relationship on the visible topic.

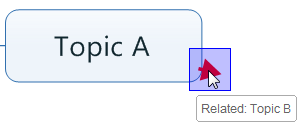

When you point to the partial relationship, a hint appears that shows the name of the related topic.

Read Hint

If the related topic is not visible because it is on a collapsed branch, you can show it by double-clicking the partial relationship arrow. Related topics that are not visible because they are hidden by a filter or by the Show Branch Alone command, or on a different slide will not be shown.

If you prefer not to see partial relationships, you can disable this option in the Relationship pull-down (uncheck Show Collapsed Relationships) or by using the MindManager View options.
Read Hint

Top of Page

Modify the relationship



Or

When you select a relationship, handles appear so you can re-shape it or change its connection point.

Change the location of the line

Connect to a different topic

Change the shape of the line

Remove a relationship

  1. Right-click the relationship line.

  2. Click Delete Relationship.
    Read Hint

Top of Page

Format the relationship

Add a label to the line

  1. Click on the relationship line to reveal the label field between the yellow diamonds:

  2. Click the word "Label" and begin typing.

Change the line's style and color

  1. Select the relationship line(s).

  2. On the Design tab, use commands in the Object Format group to change the Line style, and Line Color.

More formatting options

  1. Do one of the following:

    Right-click the relationship line, and then click Format Relationship. Or Select the relationship(s). On the Home or Insert tab, click the Relationship pull-down, then click Format Relationship. Or Double-click the relationship.
  1. Choose the desired attributes for the line(s).

  2. Click Map Theme if you wish to save all the relationship's format settings as the automatic formatting for relationships on this map, or reset it to the default formatting from the map theme.
    Read Hint

Top of Page

Jump to relationship topics

Once you have added a relationship you can quickly jump to the topic at either end of the line. This is especially useful on large maps where the relationship spans a long distance.

  1. Right-click the relationship line.

  2. Click Jump to { topicname}. A Jump To command is displayed for the topics at both ends of the arrow.
