Use Slides View |
What do you want to do? |
In Slides view, you can create and manage a set of slides for a map. Each slide can show a branch or sub-branch of the map, expanded or collapsed as you desire. This can help focus attention on a specific part of the map for presentation or printing. When you start Slides View, the Slide pane appears at the left of your screen. This where you create and manage your slides. Branches with associated slides are marked with a special icon Once you have created slides, you can print them, display them in a slide show, or export them to Microsoft PowerPoint. |
See also: |
On the View tab, in the Presentation pull down, click Slides.
The Slides pane will appear at the left of the screen.
You can display the filter indicator at lower-left to show if a filter is active, or if some map elements are hidden using the View option Show filter overlay in slides.
Do one of the following:
Right-click a topic on the map, and then click New Slide from Topic.
On the View tab, in the Presentation pull down, click New Slide from Topic.
The new slide thumbnail will appear in the Slides pane. Each slide you create is the same size, but you can adjust the size and position of its content.
On the map, the topic is marked with a special icon that indicates that this topic has a slide associated with it. If the topic has more than one associated slide, it is marked with a multiple slide icon
.
A topic can appear on multiple slides, either alone, or on a sub-branch on another slide.

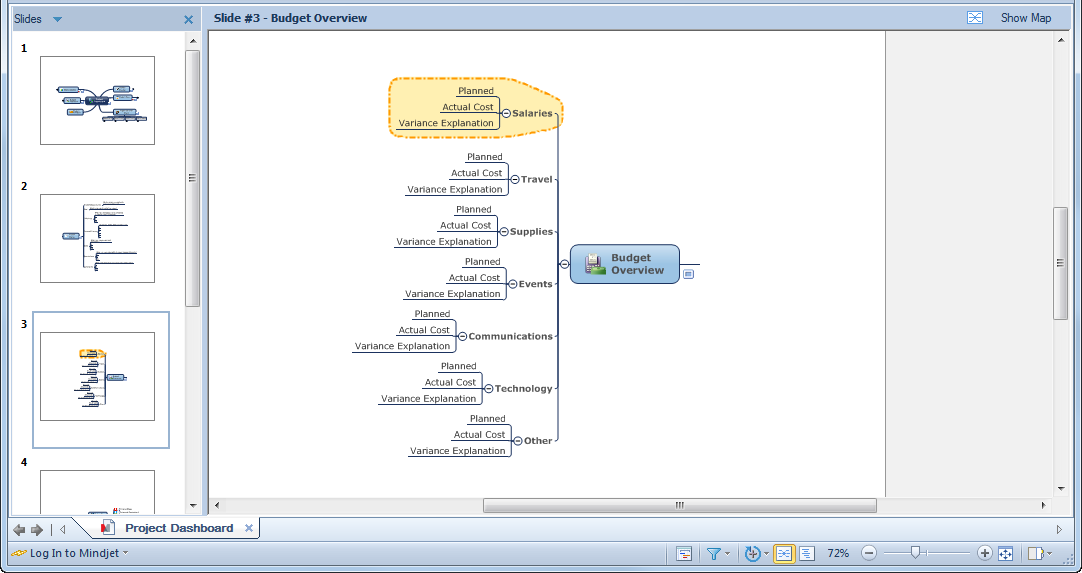

When you click a slide thumbnail in the Slides pane it is displayed in the main window. The title bar at the top of the main window displays the name of the slide you reviewing, the Pin button to unpin the boundary and adjust the size and position of the slide content, and a button to return to viewing the whole map.
To return to the full map view, click Show Map at the top of the main window when viewing a slide.
You can change how branches are displayed (expanded or collapsed) on the slide, and edit topics using the normal editing commands.
When you are viewing a slide, the gray box indicates its boundary. The boundary is like a window through which you view the map content. Slide boundaries are fixed or "pinned" as indicated by the Pin button on the Slides view title bar. In "pinned" mode, the zoom and pan controls adjust your view of the slide. When boundaries are unpinned, you can zoom and pan to adjust the position and size of the content on each slide.
It's easiest to adjust slide content when you can see the entire slide. Before you begin, pan and zoom the view to see all 4 boundaries of the slides you want to modify: While still in "pinned" mode , use the zoom control on the bottom toolbar, the zoom commands on the ribbon's View tab, or use zoom keyboard shortcuts (CTRL + = , CTRL + -), and use the scrollbars to pan the slide.
To unpin all slide boundaries, do one of the following:
On the Slides view top toolbar, click the Pin button ![]() |
Or | Click the Presentation pull-down, and then click Unpin Page Boundaries. |
The Pin button changes to to indicate that the boundaries are now unpinned, and each boundary is highlighted in yellow in the main window.
In "unpinned" mode , you can drag the boundary to change its position, or drag its corners to resize it:
You can drag the slide boundary to change its location relative to the map content.
Drag the corners of the slide boundary to change its size relative to the map content. the aspect ratio of the slide always remains constant.
To ensure that your slides reflect the current state of the map, you can refresh them.
Do one of the following:
Click the Slides pull-down arrow at the top of the Slides pane. | Or | On the View tab, click the Presentation pull-down arrow. |
In the pull-down menu, click Refresh Slide Thumbnails.
Do one of the following:
Click the Slides pull-down arrow at the top of the Slides pane. | Or | On the View tab, click the Presentation pull-down arrow. |
Click Print Slides. You can choose to print all the slides or individual slides here.
Configure the Page Setup Options and use Print Preview to check the output.
Do one of the following:
Click the Slides pull-down arrow at the top of the Slides pane. | Or | On the View tab, click the Presentation pull-down arrow. |
Click Slide Show.
Use the controls at the bottom of the screen to step through your slides and zoom in or out.
Click the Close button (at bottom-right) to exit the slide show.
Read Hints
Click and drag to re-order your slides.
Click a slide in the Slides pane and use the pull-down to Rename or Delete the slide.
Deleting a slide does not remove the topics from the map.
To remove all slides from the map, click the Presentation pull-down and then click Delete All Slides.
